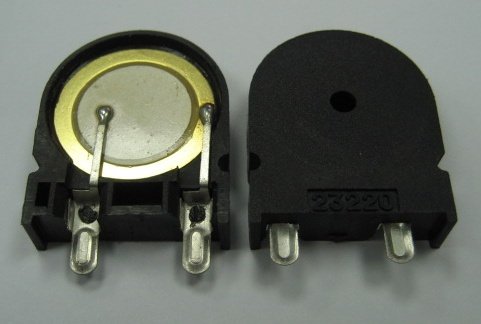

Home >> Piezo Buzzer  > External Drive > AZ-2220E-P
Piezo



External Drive Self Drive SMD Element



Piezo BuzzerPiezo Transducer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 3 Square Wave
2 Operating Voltage(Max) Vp-p 1-25
3 Current Consumption(max) mA 3
4 Sound Pressure Level dBa 70 At 10cm / 2KHz
5 Resonant Frequency Hz 2000±500
6 Operating Temp. -20 ~ +70
7 Storage Temp. -30 ~ +80
8 Capacitance pF 19000 ± 30% At 120Hz
9 Weight g 3
10 Lead wire / lead pin material Phosphor Bronze

Data Sheet
