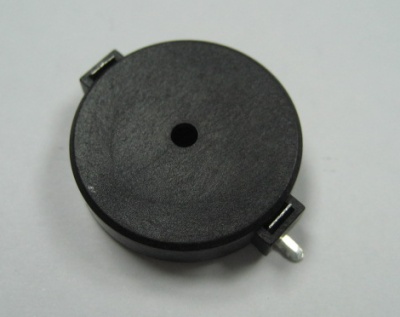

Home >> Piezo Buzzer  > External Drive > AZ-2225E-PZ
Piezo



External Drive Self Drive SMD Element



Piezo BuzzerPiezo Transducer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 3~30
3 Rated Current mA(Max) 8 At 10 Vp-p
4 Sound Output At 10cm dBA(Min) 80 At 10 Vp-p
5 Resonant Frequency Hz 2500±500
6 Capacitance at 120Hz pF 25000±30%
7 Operating Temp. -20 ~ +70
8 Storage Temp. -30 ~ +80
9 Weight g 2
Data Sheet
