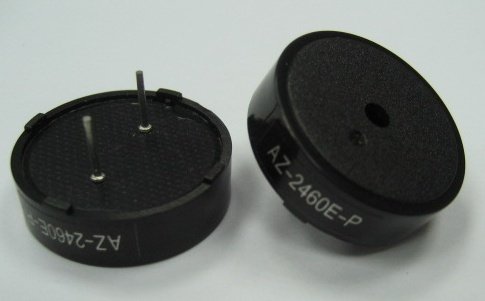

Home >> Piezo Buzzer  > External Drive > AZ-2460E-P
Piezo



External Drive Self Drive SMD Element



Piezo BuzzerPiezo Transducer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1 ~ 30
3 Rated Current mA(Max) 5 10Vp-p / 6.0KHz
4 Sound Output At 10cm dBA(Min) 90 At 10Vp-p / 6.0KHz
5 Resonant Frequency Hz 6000±500
6 Capacitance at 120Hz pF 12000±30%
7 Operating Temp. -20 ~ +60
8 Storage Temp. -30 ~ +70
9 Weight g 3
Data Sheet
