| 1 |
Type |

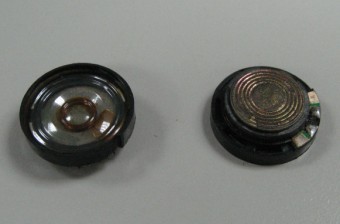

Dynamic speaker |
| 2 |

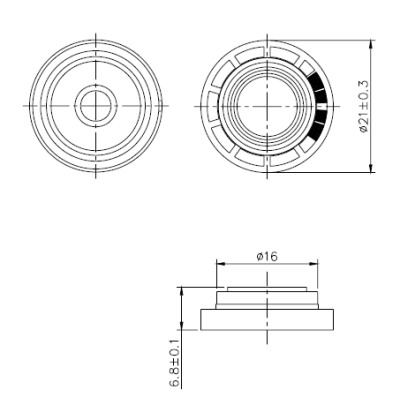

Dimension |
External diameter 21 mm |
| 3 |
Rated Input Power |
0.1 W |
| 4 |
Impedance |
32 ohm ± 15% at 1500Hz |
| 5 |
Resonance Frequency (Fo) |
1000 Hz ± 20% at Fo, 1V |
| 6 |

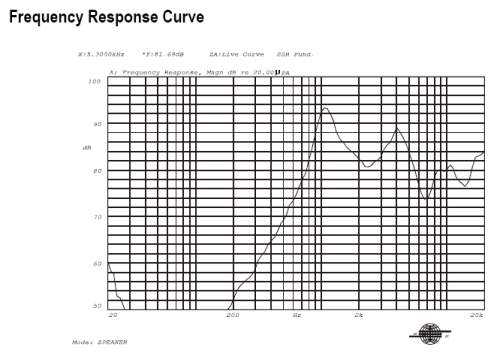

Sensitivity (S.P.L.) |
73dB(W/m) ± 3 dB at AVE 1.5K,2.0K,2.5K,3.0K(Hz). |
| |
|
83dB(0.1W/0.1m) ± 3 dB |
| 7 |
Frequency Range |
Fo – 5KHz |
| 8 |
Distortion |
Less than 10 % at 1500Hz 0.1W |
| 9 |
Max. Input Power |
Must be normal at 0.2W white noise for 1 minute. |
| 10 |
Voice Coil |
Diameter 6 mm |
| 11 |
Magnet |
Rare earth permanent (Ferrite) magnet Φ15.5 Xφ6.5 x 1.5mm |
| 12 |
Weight |
3 ± 0.5 g |
| 13 |
Appearance |
Should not exist any obstacle to be harmful to normal operation;
damages, cracks, rusts and distortions, etc. |
| 14 |
Operation Test |
Must be normal at program source –0.1W |
| 15 |
Buzz, Rattle, etc. |
Should not be audible at 1.78V sine Wave between Fo to 20KHz |
| 16 |
Polarity |
When positive voltage is applied to the terminal marked (+), diaphragm
should move to the front. |
| 17 |
Terminal Strength |
Capable of withstand 1kg load for 30 seconds without resulting in
any damage or rejection. |
| 18 |
Load Test |
0.1 W white noise is applied for 96 hours and satisfy the test listed
on item 05,06,13,15 |
| 19 |
High Temp. Test |
Keep 96 hours at +70℃±3℃ and leave 3 hours in normal temperature
and then check |
| 20 |
Low Temp. Test |
Keep 96 hours at -20℃±3℃ and leave 3 hours in normal temperature
and then check |
| 21 |
Humidity Test |
Keep 96 hours at + 60℃±3℃ relative humidity 95% and leave 3 hours
in normal temperature and then checked. |
A & B Components Co. Ltd.
