| ITEM |
|
SPECIFICATIONS |
| 1 |

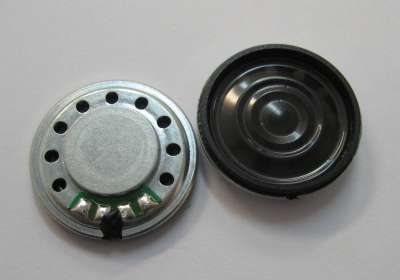

Type |
Dynamic speaker |
| 2 |

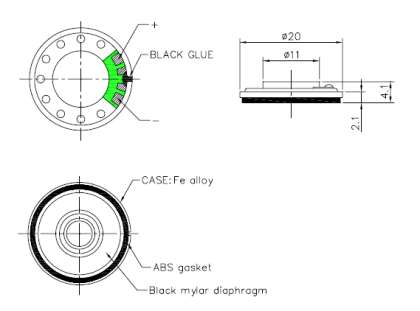

Dimension |
External diameter 20mm |
| 3 |
Rated Input Power |
0.5W. |
| 4 |
Max. Input Power |
0.8W. |
| 5 |
Impedance |
32 ohm ± 15% at 2K Hz |
| 6 |
Resonance Frequency (Fo) |
870 Hz ± 20% at Fo, 1V |
| 7 |
Sensitivity (S.P.L.) |
92dB(0.1W/0.1m) ± 3 dB at AVE1.0K,1.8K,2.0K,2.5K Hz. |
| |
|
98dB(0.5W/0.1m) ± 3 dB |
| 8 |

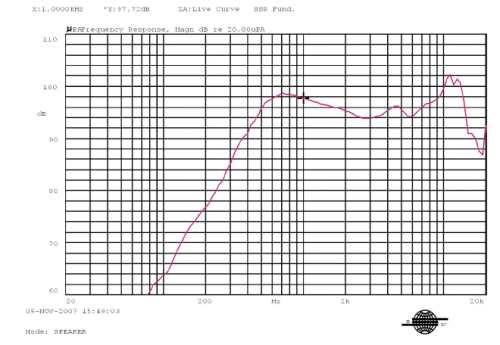

Frequency Range |
Fo –7.5K Hz |
| 9 |
Total Harmonics Distortion |
Max. 8% at 1K Hz ,0.5W. |
| 10 |
Voice Coil |
Diameter8.5 mm |
| 11 |
Magnet |
Rare earth permanent (Ferrite) magnet Φ8 x 1.0 mm |
| 12 |
Weight |
2.5g ± 0.3g |
| 13 |
Appearance |
Should not exist any obstacle to be harmful to normal operation;
damages, cracks, rusts and distortions, etc. |
| 14 |
Operation Test |
Must be normal at program source 0.5W |
| 15 |
Buzz, Rattle, etc. |
Should not be audible at 4.0V sine Wave between Fo to 20KHz |
| 16 |
Polarity |
When positive voltage is applied to the terminal marked (+), diaphragm
should move to the front. |
| 17 |
Terminal Strength |
Capable of withstand 1kg load for 30 seconds without resulting in
any damage or rejection. |
| 18 |
Temperature |
Operating temperature: -20℃ to +60℃ |
| |
|
Storage temperature: -30℃ to +70℃ |
